Blackmagic ATEM 4 M/E Constellation 4K Plus
E-CODE: Q282U-

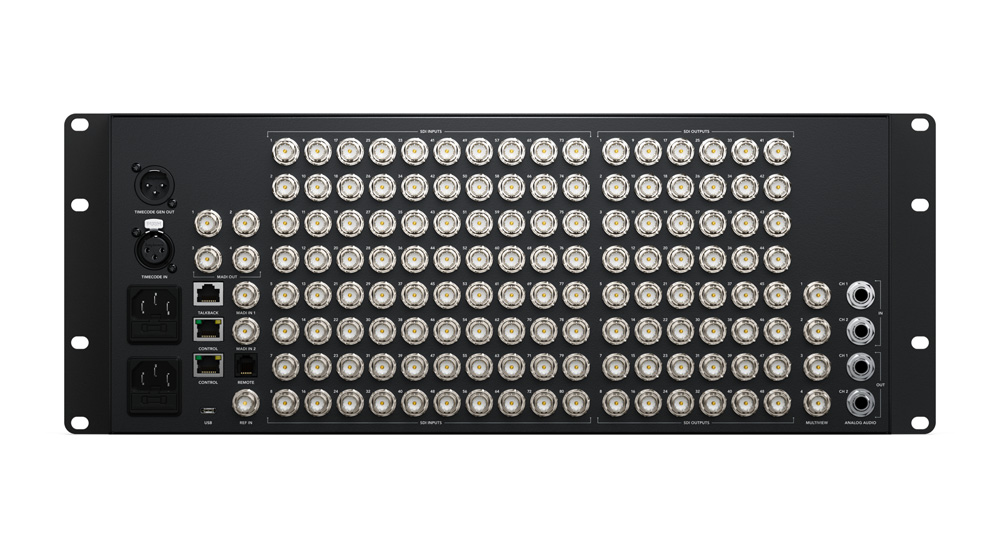

- 80x standards-converted 12G-SDI inputs with frame sync on every input
- 48x independent 12G-SDI aux outputs
- 4 M/E rows with Ultra HD switching up to 4K60 10-bit
- 16 ATEM Advanced Chroma Keyers and 2 SuperSource processors
- 4 independent Ultra HD multiviewers with 16 windows each
- 298 channel Fairlight audio mixer, MADI I/O and talkback
Product Details
4 M/E Live Production Switcher for Broadcast and Live Events
The Blackmagic ATEM 4 M/E Constellation 4K Plus is the largest switcher in the ATEM Constellation line. It doubles the I/O of the standard 4 M/E model with 80 standards-converted 12G-SDI inputs and 48 independent 12G-SDI aux outputs. Every input includes frame synchronization and format conversion, so mixed sources connect without external converters. As a result, the switcher suits large broadcast productions, concerts, festivals, sports and multi-camera corporate shows.
Ultra HD Switching, Keying and Effects
The switcher runs four mix effects rows with full Ultra HD processing up to 4K60 at 10-bit. Operators get 16 ATEM Advanced Chroma Keyers for multi-layer compositing and virtual set work. Additionally, four DVEs handle picture-in-picture and animated transitions. Two independent SuperSource processors each add four DVE layers over a background, functioning like extra compositing switchers. Four media players pull from a pool of 64 stills and 4 motion clips. For monitoring, four independent Ultra HD multiviewers offer 16 routable windows each.
Audio Mixing and Crew Communications
A built-in 298 channel Fairlight audio mixer provides EQ and dynamics on every input, and MADI I/O connects the switcher to larger audio infrastructures. Therefore, smaller productions can mix entirely inside the switcher without a separate audio console. Built-in talkback supports a 5-pin XLR headset plus an RJ12 connection for ClearCom and RTS systems. The switcher also delivers a USB-C webcam output for streaming workflows.
Compact Design for Production Trucks and Flypacks
The rack-mount chassis includes a front control panel and an LCD for program and settings. However, most operators pair it with an ATEM hardware panel or software control over the network. Because the full 4 M/E system lives in a compact chassis, it packs efficiently for trucks, flypacks and temporary control rooms. If you have questions about pairing control surfaces, converters or cameras, our product experts can help. Add the ATEM 4 M/E Constellation 4K Plus to your cart to request a quote.
