Analog Way Aquilon RS6 Processor
E-CODE: Q28AK-
- 32x seamless 4K60p inputs, 20x active 4K60p outputs
- Up to 16x 4K mixing layers or 32x 4K split layers
- 10/12-bit 4:4:4 processing with latency as low as 1 frame
- Native Dante 64×64 audio networking
- 2 dedicated multiviewer outputs with 64 widgets each
- Field-replaceable I/O cards including NDI, SDVoE and ST 2110 options
Product Details
Analog Way Aquilon RS6 Rental
The Aquilon RS6 sits at the top of Analog Way’s LivePremier line. It is a 6RU multi-screen presentation system and videowall processor built for high-end staging, broadcast and premium corporate events. The system handles 32 seamless 4K60p inputs and 20 active 4K60p outputs from a single chassis. As a result, one processor can drive main screens, delay walls, auxiliary displays and confidence monitors without external routing.
4K Video Processing for Live Events
Processing runs at 10 and 12-bit 4:4:4 with latency as low as one frame in proper configuration. Total throughput reaches 160 megapixels on program at 10-bit 4:4:4 at 60Hz. The RS6 also performs real-time SDR, HDR10 and HLG conversion with 3D LUT color correction. Screens can be configured as single displays or edge-blended widescreens, and program outputs can be placed anywhere on the canvas for LED wall applications. Depending on setup, operators get up to 16 4K mixing layers or 32 4K split layers. Additionally, two dedicated multiviewer outputs provide 64 resizable widgets each for show monitoring.
Connectivity and Show Control

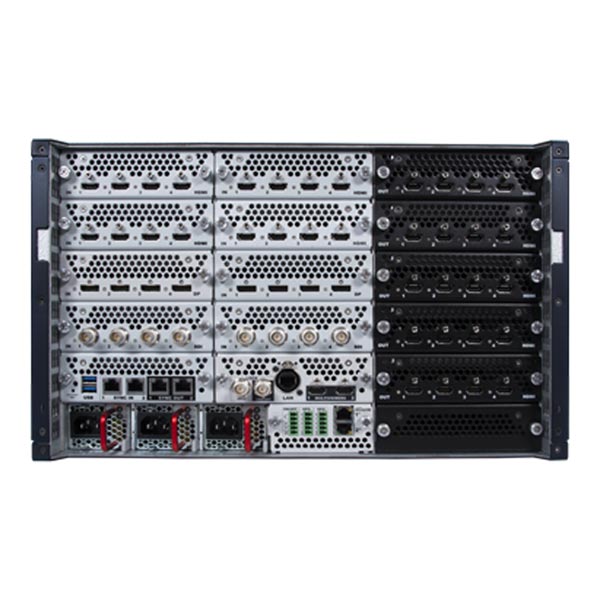

Input cards ship as 16 HDMI 2.0, 8 DisplayPort 1.2 and 8 12G-SDI, and all cards are field-replaceable. Optional cards add NDI, SDVoE, ST 2110, fiber and SFP+ connectivity. Onboard Dante supplies 64×64 audio channels at 48kHz with de-embedding and embedding on every input and output. For control, the Web RCS interface supports drag and drop operation, live thumbnails and multi-operator collaboration. The system also integrates with the RC400T event controller, Crestron, AMX and Q-SYS.
Built for Touring and Staging
The ruggedized chassis carries redundant swappable power supplies and a cleanable air filter. Therefore, the RS6 holds up through load-ins, truck packs and long show runs. If you have questions about configuration or I/O cards, our product experts can help you spec the right package.
You may also consider the Analog Way Aquilon RS4, which has 24x seamless 4K60p inputs and 16x active 4K60p outputs.
Add the Aquilon RS6 to your cart to request a quote.
