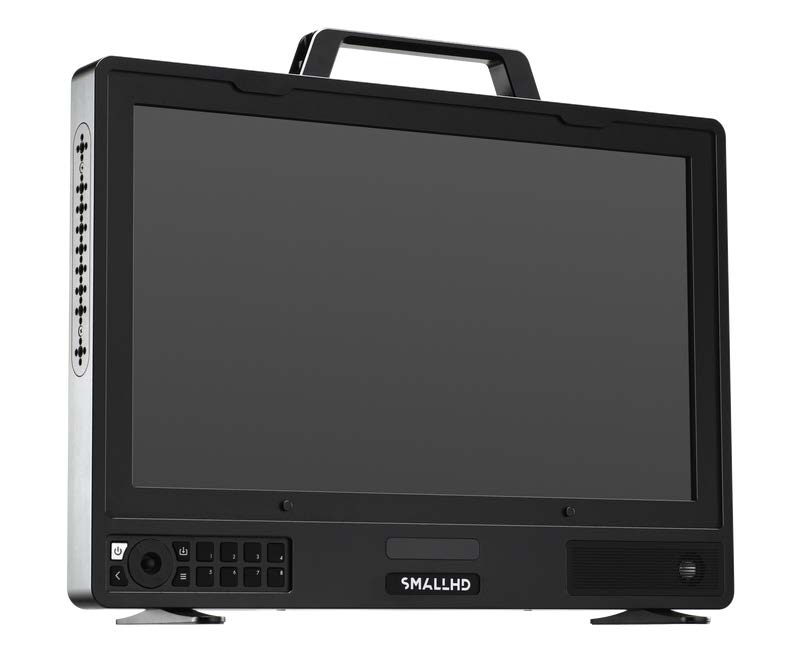

SmallHD Vision 17” 4K HDR Monitor
E-CODE: Q50G2-
- HDR
- 1000NITS
- 4X 12G-SDI IN/OUT
- UHD
- 10BIT COLOR DEPTH, 3D LUT SUPPORT
Product Details
1000+ nits of brightness to achieve perfect uniformity in contrast and latitude, with even deeper blacks and greater highlight detail.
10-bit color depth ensures a color-accurate look at your production.

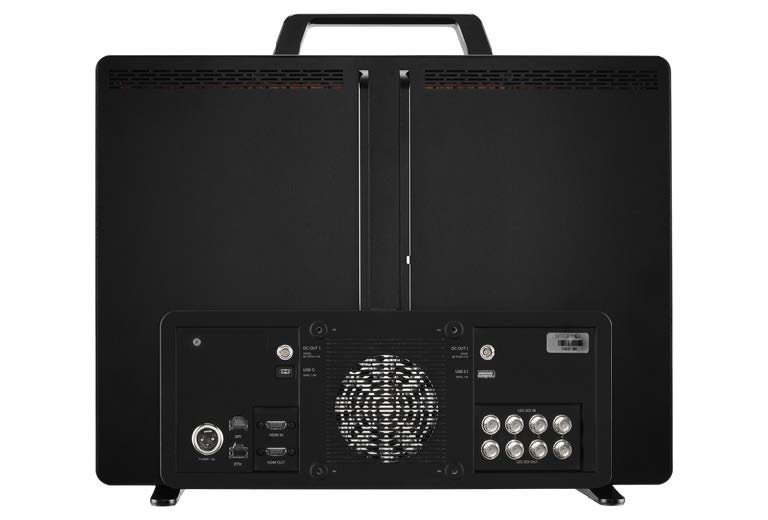

The Vision 17 features four 12G SDI inputs and outputs as well as one HDMI 2.0 input.
The Unibody Smart Chassis offers a Dovetail Mounting Rail for battery and accessory mounting, interchangeable mounting points, and 2x 2-pin
accessory power outputs.
Optional Hot-swappable dual inputs allow you to add on Gold Mount or V-Mount battery plate attachments.
Manufacturer Specs
- Dimensions (LxHxD): 44cm x 31.4cm x 6cm, 17.4” x 12.4” x 2.4”
- Weight: 4.8kg / 10.7 lb
- Contrast Ratio: 100,000:1
- Inputs: 4x SDI- 12g/6g/3g/ 1x HDMI 2.0
- Outputs: 4x SDI- 12g/6g/3g/ 1x HDMI 2.0
- 3D LUT: SD Card
- Power input: One 3-pin XLR 12 to 24V, 12A input
- Separately available V-mount or Gold mount battery plates
