Lectrosonics SNA600 Collapsible Omnidirectional Dipole Antenna
E-CODE: R637A-
Product Details
The SNA600 antenna is a versatile tool for use with
wireless microphone receivers or IFB transmitters. The
center frequency of its 100 MHz bandwidth is tunable

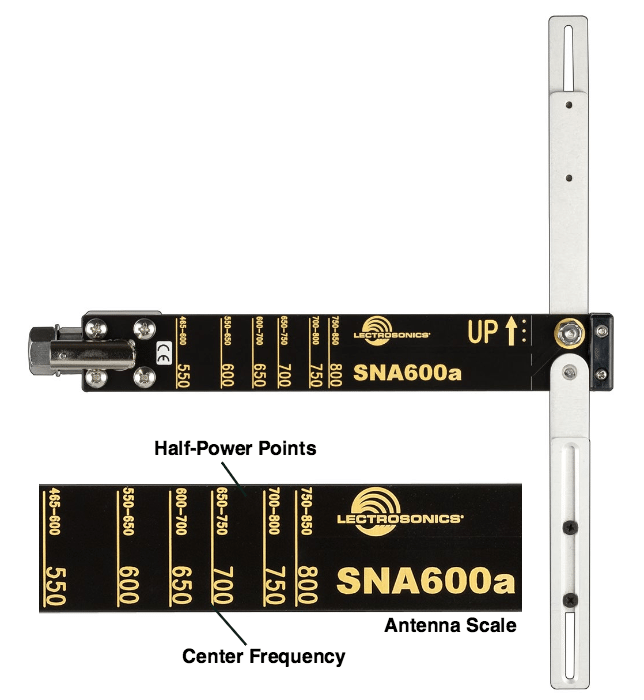

from 471 to 800 MHz. The frequency is set by adjusting
the dipole elements using the scale printed on the body
of the antenna. The elements fold for storage.
The body of the antenna is made of from fiberglass circuit
board material. Nomenclature is printed in copper on
the board with a black solder mask to provide excellent
visual contrast. Copper traces on the circuit board form a
balun for an ideal match to a 50 ohm line via a standard
BNC connector.
