Audio > Speakers > Amplifiers > L-Acoustics LA7.16 Amplified Controller

L-Acoustics LA7.16 Amplified Controller

E-CODE: B780C-

  • Up to 1300 watts per channel at 8 ohms, 16 channels.
  • L-SMART power management with advanced DSP.
  • Compact 2U chassis with Milan-AVB redundancy.
  • Supports Milan-AVB, AES/EBU, and analog inputs.
  • Loudspeaker monitoring, protection, and GPIO support.

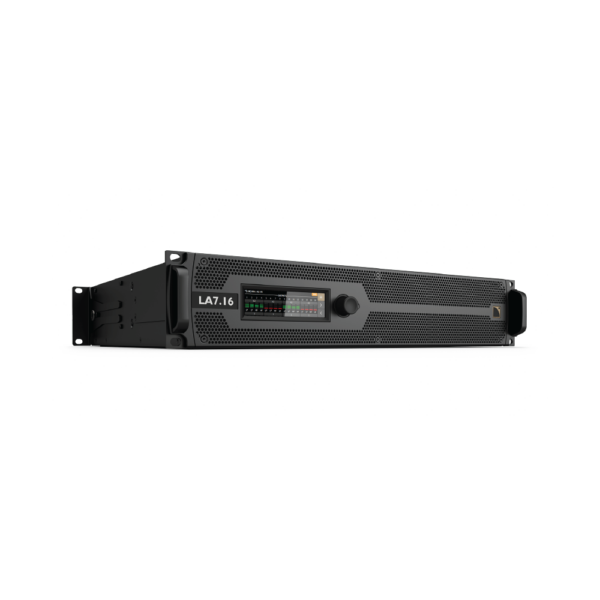

L-Acoustics LA7.16i Product Photo (Side View)

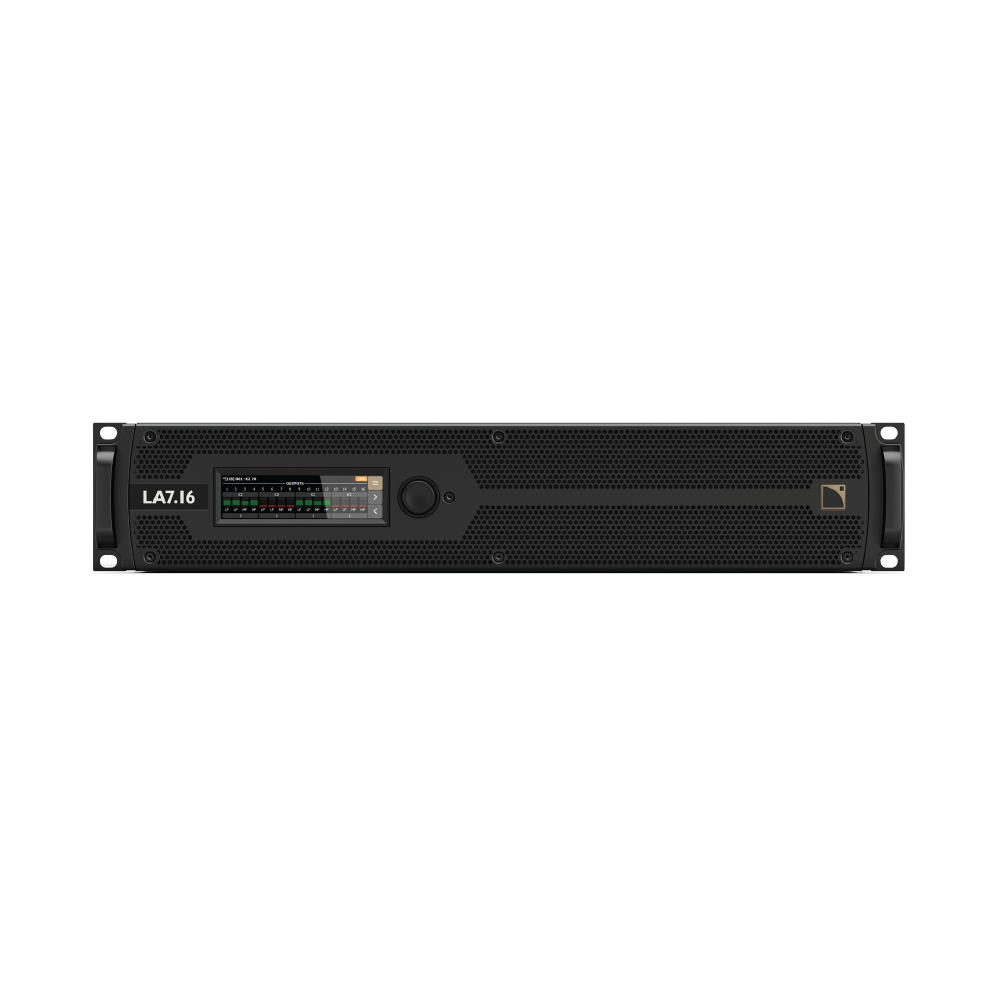

L-Acoustics LA7.16i Product Photo (Front View)

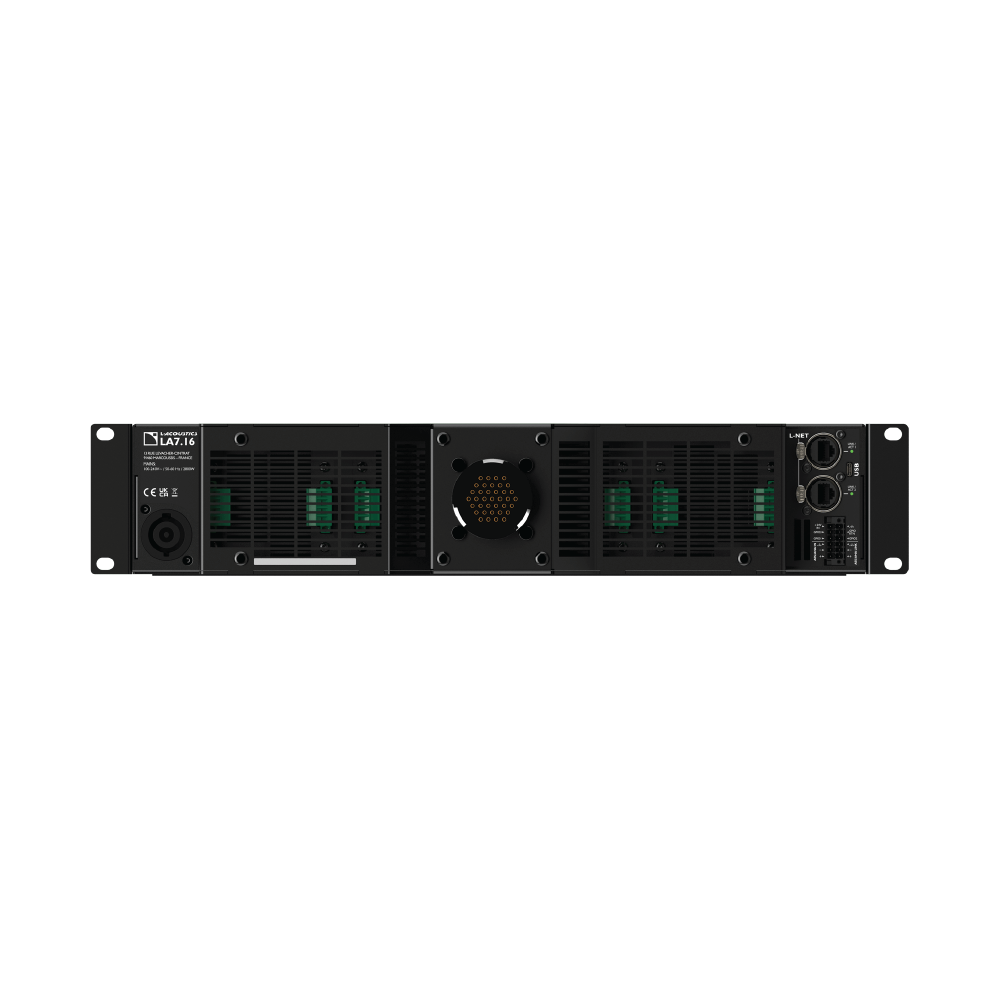

L-Acoustics LA7.16i Product Photo (Back View)

Product Details

Amplify Differently with the L-Acoustics LA7.16 Amplified Controller

Introducing the L-Acoustics LA7.16 amplified controller. This product is a breakthrough in high-power amplifier configurations. Designed for the strategic installation market, the LA7.16 sets a new standard in flexibility and efficiency. It excels especially in multi-channel scenarios. Encased in a sleek 2U chassis, the LA7.16 delivers 16 output channels. Each channel provides up to 1300 watts at 8 ohms or 1100 watts at 4 ohms. Additionally, it features seamless Milan-AVB redundancy.

Supreme Flexibility and Efficiency

The L-Acoustics LA7.16 amplified controller meets real-time power needs and energy efficiency requirements. It drives both current and future L-Acoustics loudspeakers, ensuring more efficient and sustainable installations. Engineered with innovative L-SMART technology, it uses advanced predictive modeling algorithms. These algorithms dynamically match the power supply unit (PSU) and amplification channels to the system’s needs. Consequently, this ensures optimal performance at all times. Furthermore, the technology delivers power efficiently and consumes 30% less energy when idle.

Unmatched Versatility and Control

With the L-Acoustics LA7.16 amplified controller, L-Acoustics introduces an unprecedented 16×16 architecture in a compact form factor. This high channel density makes it perfect for medium to large permanent installations. It is also ideal for immersive audio setups, providing unmatched discretization and adaptability. The amplified controller supports various applications. It works with individual speaker systems, line source arrays, or hybrids of both. Designers can mix and match any L-Acoustics loudspeaker onto one amplifier without wasting power.

Moreover, the L-Acoustics LA7.16 amplified controller features robust system control and connectivity options. These include loudspeaker monitoring, protection, and management. It supports GPIOs, terminal block connectors, and a backup 24V DC input. Thus, it ensures continued DSP card functionality during power outages. Its comprehensive input options include Milan-AVB inputs with seamless network redundancy, AES/EBU, and analog connections. Additionally, smart mains current limiting and circuit breaker emulation ensure reliable operation.

Precision and Durability of the LA7.16

L-Acoustics’ R&D resources have created a durable and high-performance product. The L-Acoustics LA7.16 amplified controller uses automotive-grade components and special airflow modeling. Its streamlined and elegant design hides a powerful DSP engine. This engine is equipped with tools for system adjustment and calibration. Therefore, the LA7.16 is versatile and reliable, making it an excellent choice for any installation. In conclusion, the L-Acoustics LA7.16 amplified controller is set to revolutionize the installation market. It offers a lower cost-per-channel solution with superior energy efficiency and unmatched flexibility.
