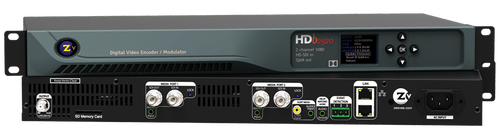

ZeeVee HDbridge HDb2920 2-Channel HD-SDI Digital AV Encoder/QAM Modulator
E-CODE: Q262T-
Product Details
ZeeVee HDbridge Series 2000, Model HDb2920 HD-SDI 2-Channel Broadcast Quality Digital Encoder QAM Modulator – 1080p
The ZeeVee HDb2920 headend-ready technology delivers up to 1080p resolution video from HD-SDI sources to an unlimited number of displays over existing coax for broadcast studios, security, and large venue applications like stadiums and arenas.
Features:
Transmit multiple SDI channels over a QAM Channel using existing coax

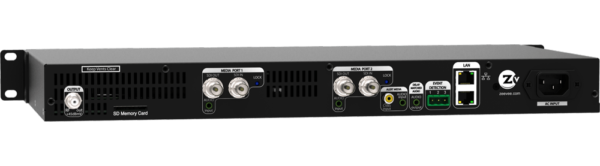

HD-SDI ports have reclocked, amplified loop-through output
Faster deployment and configuration with our Maestro interface
Added support for an Emergency Alert (EAS) channel, closed-captioning, and a bonus information channel
Dolby Digital audio
Mission-critical reliability
Superior Video Quality
Full MPEG2 implementation
I, P, and B Frames
Low latency
Full motion estimation with a wide search range
Manufacturer Specs
Specifications:
General
Model Name: HDbridge Series 2000, HDb2920
Part Number: HDb2920-NA
Power: 100-240 VAC 50/60 Hz, 60W max. 30W Typical IEC 60320-C14
Cooling: Dual internal cooling fans, Front inlet, Rear exhaust
Temperature/Humidity: Operating +32 F0 to +113 F0 (0 C0 to +45 C0) / 10% to 80%, non-condensing
Vibration: NSTA 1A in carton
MTBF: 62,000 hours
Compliance: FCC Class A, IEC60065, EN61000 (see Manual #70-00045), CE, RoHS, RCM C-Tick
Enclosure Type: Metal
Mounting: Rack ears shipped attached, 1RU high
Enclosure Dimensions: 1.72 in. (H) x 17.33 in. (W) (without rack mount ears) x 9.9 in. (D) 43.6 mm (H) x 440.2 mm (W) x 251.5 mm (D)
Weights System: 6.5 lbs. (2.95 kg) | Shipping: 8.13 lbs. (3.69 kg)
Carton Dimensions: (individual) 4.25 in. (H) 30.875 in. W 12.125 in (D) 108 mm (H) 785 (mm) W 308 (mm) (D)
Warranty: 5 years
MADE IN USA!
Video Input
