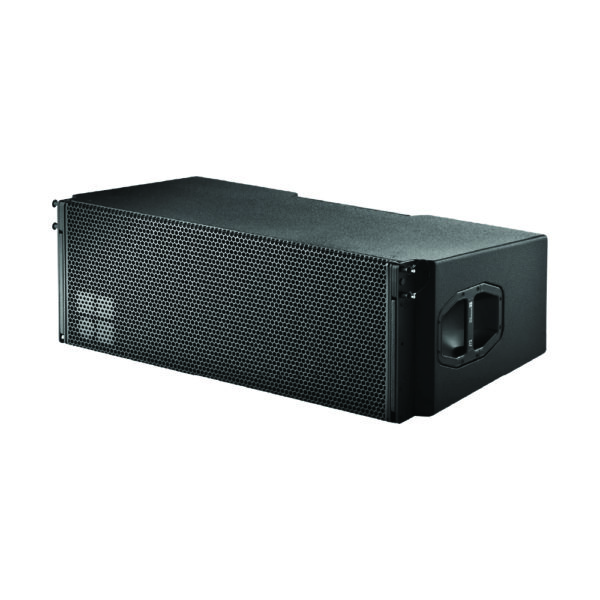

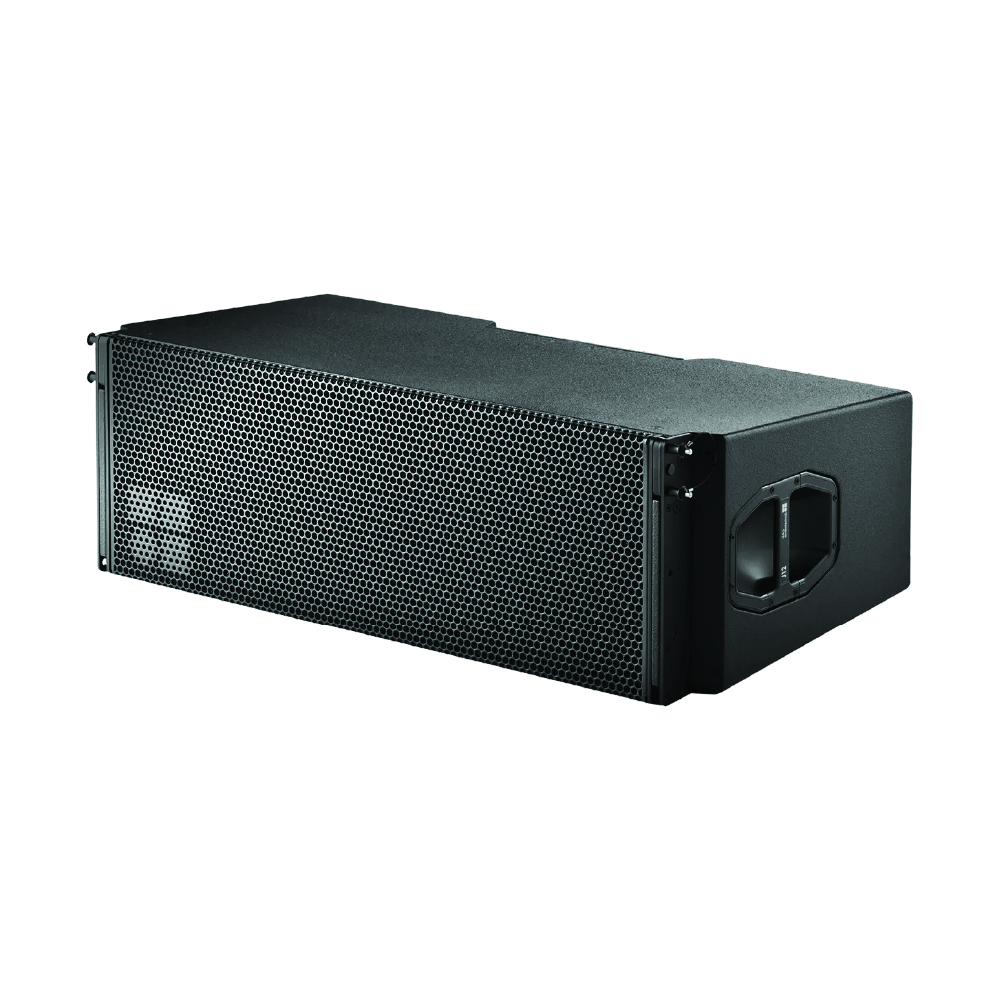

This 3-way design houses two 12″ LF drivers, one hornloaded 10″ MF driver and two 1.4″ exit HF compression drivers with 3″ voicecoils mounted to a dedicated waveshaping device. The mechanical and acoustical design enables flown vertical columns of up to 24 loudspeakers to be suspended using vertical splay angles between them of 0° to 7° with a 1° resolution. The cylindrical wave segments produced couple coherently in the vertical plane. Due to the dipolar arrangement of the neodymium LF drivers, the exceptional 120° horizontal constant directivity dispersion control is nominally maintained down to 250 Hz.

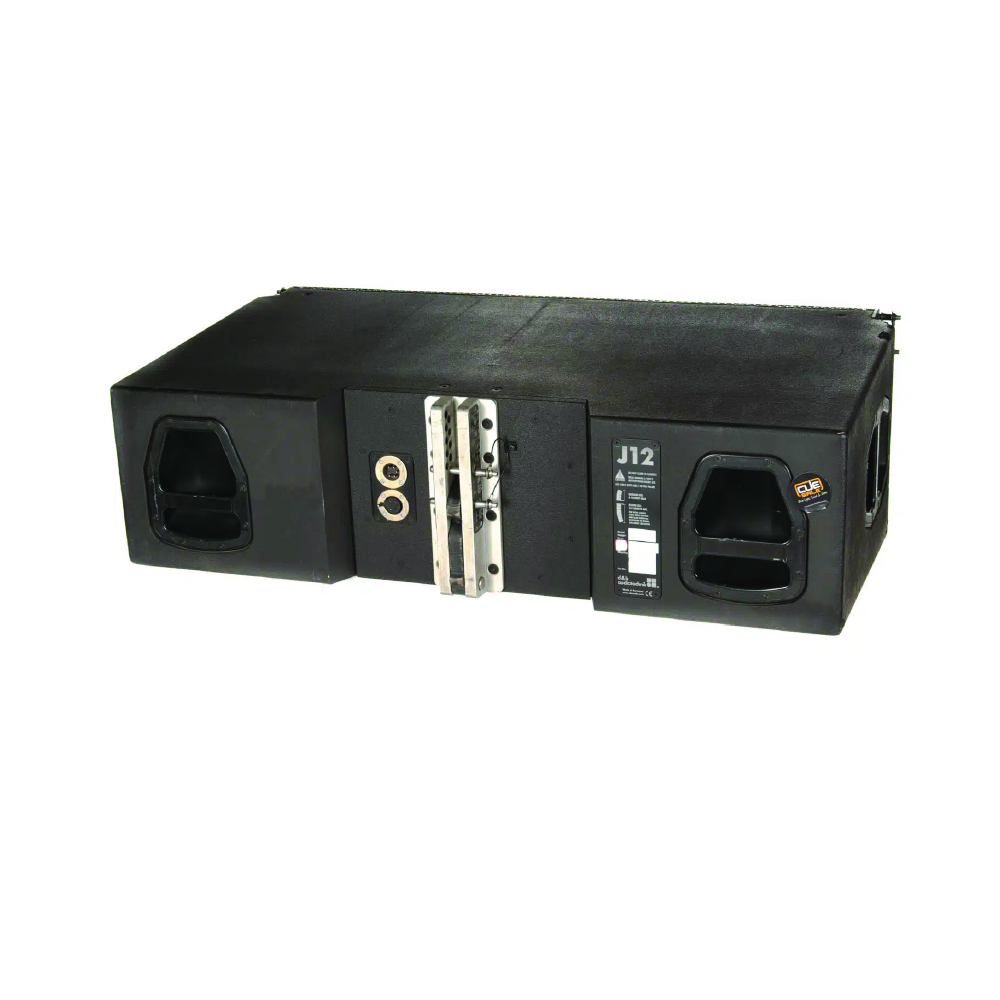

The cabinet is constructed of marine plywood with an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front is protected by a rigid metal grill, the side and rear panels incorporate four handles, and two EP5 or NL8 connectors wired in parallel are also mounted at the rear.

The J12 is acoustically and mechanically compatible with the J8 loudspeaker. It can be used in columns of purely J12 loudspeakers or combined with J8s and/or with J-SUBs. It can be driven only by the d&b D12 dual-channel amplifier configured for it. More detailed information on specific loudspeaker setups with the D12 amplifier is available either in the relevant loudspeaker or D12 manual.

Suggested uses include live music, playback, and speech.
