Canon KJ22ex7.6B IRSE HD Lens
E-CODE: P233W-
Product Details

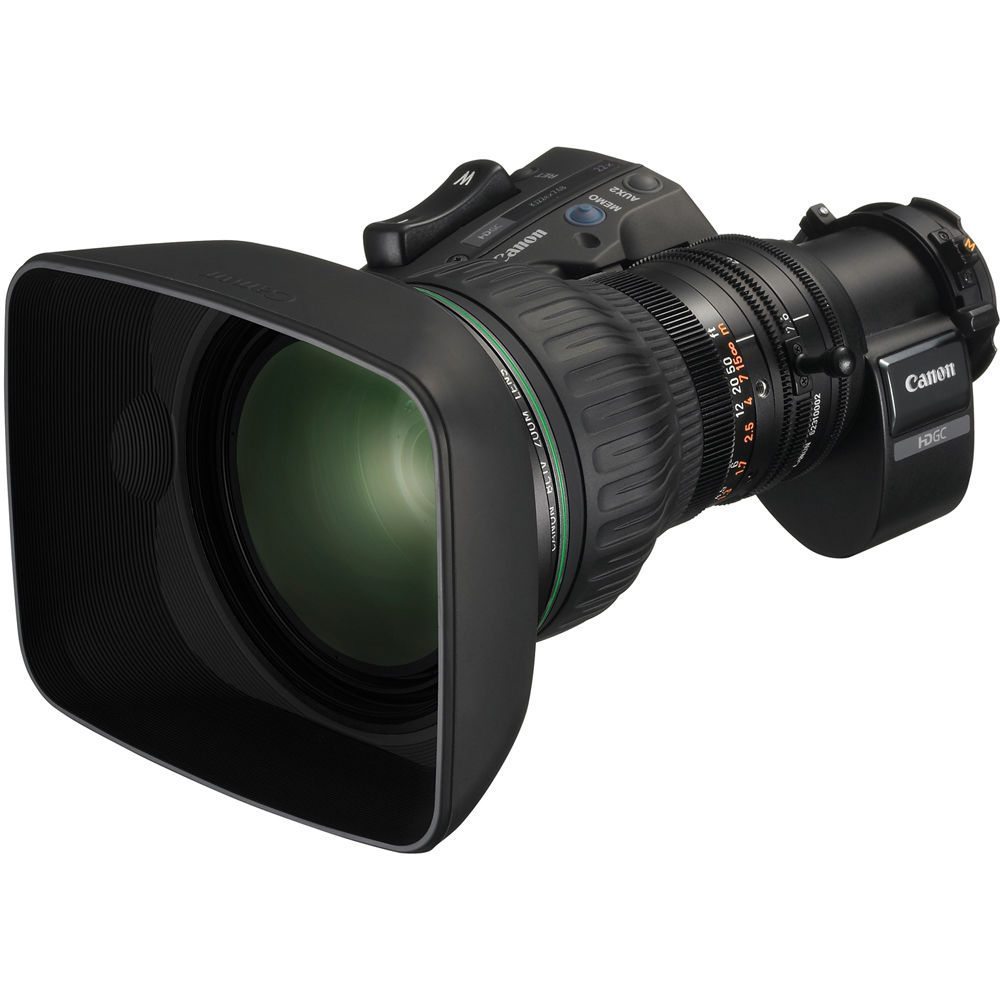

The Canon KJ22EX7.6B IRSE 2nd Generation HDgc Telephoto Lens offers 22x zoom ratio, 65° wide angle view, and delivers images in the 16:9 HD and 4:3 formats. It has a focal length of 7.6-168mm, and with the built-in 2.0x extender provides a focal length of 15.2-336mm, providing improved image framing for outdoor applications. The focus can be manually adjusted.
Equipped with an enhanced digital drive featuring miniature 16-bit high resolution Rotary Encoder Devices, the KJ22EX7.6B IRSE Telephoto Lens offers a dynamic zoom speed range of 0.5 sec. to over a 5 min. super slow zoom, precise lens control, and zoom, focus, and iris control repeatability. In addition, it can be easily integrated into virtual digital studio systems without any options. Canon’s Information Display provides precise customization of the enhanced digital functions.
With the use of new optical designs, the KJ22EX7.6B IRSE Telephoto Lens provides enhanced quality images and maintains a fine balance between size, weight, and HD optical performance. It uses special optical materials including Fluorite and Hi-UD glasses that help reduce curvature of field and chromatic aberrations. With a large Diameter Aspherical lens, the lens provides enhanced control of comatic aberration, geometric distortion, and corner resolution.
22x zoom ratio
65° wide angle view
Delivers images in the 16:9 HD and 4:3 formats
Features a focal length of 7.6-168 mm
Focus adjustment – Manual
Built-in 2.0x extender – provides a focal length of 15.2-336 mm and an improved image framing for outdoor applications
Equipped with an enhanced digital drive featuring miniature 16-bit high resolution Rotary Encoder Devices that offers dynamic zoom speed range of 0.5 sec. to over a 5 min. super slow zoom, precise lens control, zoom, focus and iris control repeatability, and easy integration into virtual digital studio systems without any options
Canon’s Information Display provides precise customization of the enhanced digital functions
Shuttle Shot – the Digital Drive, on memorizing any 2 focal lengths, can automatically “shuttle” between them, moving in either direction
Frame Preset – an angle of view can be preset in either of 2 memories, and at the push of a button, the lens will zoom at the highest speed or in a preset zoom speed to the preset position
Speed Preset – a specific zoom speed can be preset in memory, and at the push of a button, the zoom speed can be repeated as often as you wish
Uses new optical designs – help provide enhanced quality images and maintain a fine balance between size, weight, and HD optical performance
Incorporates special optical materials including Fluorite and Hi-UD glasses that help reduce curvature of field and chromatic aberrations
Uses Large Diameter Aspherical lens for enhanced control of comatic aberration, geometric distortion, and corner resolution
